FreeOhFree v1.0

Authentic 303 Bass Synthesizer

---

Overview

FreeOhFree is a meticulously crafted software recreation of the legendary 303 synthesizer. Delivering the authentic squelch, slide, and character of the original acid machine, FreeOhFree combines classic analog modeling with modern workflow enhancements. From deep sub-bass to screaming resonant leads, FreeOhFree captures the soul of the 303 while adding powerful pattern management, scale quantization, and flexible MIDI capabilities.

Featuring authentic ladder filter modeling, analog-style drift and character, 512 pattern storage slots, 12 musical scales, and comprehensive MIDI control with MIDI learn, FreeOhFree is the ultimate tool for acid basslines, vintage house grooves, and experimental electronic music production.

---

Key Features

🎛️ Authentic 303 Sound Engine

• Dual Oscillators – Classic sawtooth and square waveforms with PolyBLEP anti-aliasing
• 4-Pole Ladder Filter – Authentic transistor ladder topology with self-oscillation at high resonance
• Cutoff Range: 314Hz to 2398Hz – Authentic TB-303 frequency response
• Resonance: 0-100% – From subtle emphasis to aggressive overdrive and classic TB-303 ‘squelch’
• Filter Envelope – Classic attack/decay envelope with accent boost
• Filter Tracking – 0-100% keyboard follow for expressive playing across octaves
• Analog Character – Natural tuning and filter drift with subtle noise for authentic warmth
• DC Blocking & Anti-Aliasing – Clean signal path with DC removal and anti-aliasing filtering

🎹 16-Step Pattern Sequencer

• 512 Total Patterns – 8 banks (A-H) × 64 patterns per bank
• Variable Length – 1-16 steps per pattern for complex polyrhythms
• Per-Step Programming – Note, accent, slide, and tie flags per step
• Per-Step Accent Amount – Individual accent intensity (0-100%) stored per step
• Tie Notes – Chain notes across steps for extended sustains and legato phrases
• Visual Step Editor – Color-coded step buttons with accent/slide/tie indicators
• Pattern Copy/Paste – Duplicate patterns across banks for workflow efficiency
• Pattern Transpose – +/- semitone transposition with octave shortcuts (±12, ±5)
• Pattern Randomization – Generate patterns at 40%, 60%, or 80% density

🎼 Musical Intelligence

• 12 Musical Scales – Chromatic, Major, Minor, Dorian, Phrygian, Lydian, Mixolydian, Minor Pentatonic, Major Pentatonic, Blues, Harmonic Minor, Melodic Minor
• Root Note Selection – All 12 chromatic roots (C – B)
• Scale Quantization – Automatic note snapping to selected scale
• Visual Scale Guide – On-screen keyboard highlights available notes for easy programming

🔊 Delay & Modulation Effects

• 6 Effect Types – Delay, Pan Delay, Chorus 1, Chorus 2, Flanger, Delay+Chorus
• Tempo-Synced Timing – 16 rhythmic divisions from 1/32 to whole note (includes triplets and dotted)
• Adaptive Feedback – Intelligent feedback scaling prevents runaway at shorter delay times
• Stereo Width – Wide stereo image on Pan Delay, Chorus, and Flanger modes
• Natural Degradation – Feedback filtering mimics tape-style repeat character
• Delay Gain – 0-100% wet/dry mix for subtle to extreme effects

⚡ Modulation & Expression

• Accent Control – Global accent amount (0-100%) with per-step storage and recall
• 303-Style Slide – Authentic portamento with global enable and per-step flags
• Portamento Time – 2ms – 2000ms glide time for smooth or fast slides
• Envelope Modulation – 0-100% filter envelope depth with accent boost
• Filter Attack – 0.3-3000ms attack phase for plucky or smooth filter sweeps
• Decay Control – 10ms – 2 seconds exponential decay
• Gate Time – 25ms – 250ms note duration with intelligent tempo sync

🎚️ Timing & Groove

• Swing Control – 0-100% swing amount for groove and feel
• 5 Shuffle Patterns – None, Light, Medium, Heavy, Triplet for different groove styles
• DAW Sync – Automatic tempo sync (30-300 BPM) with transport follow
• Pattern-Specific Parameters – Each pattern stores its own synth settings

🎹 MIDI Capabilities

• Full MIDI Learn – Right-click any knob to assign MIDI CC control with visual indicators
• 8-Voice Polyphony – Play multiple notes simultaneously from your MIDI controller
• Track Mode Recording – Record notes into the sequencer in real-time during playback
• MIDI Toggle – Enable/disable MIDI input independently from sequencer playback
• Scale-Aware Input – MIDI notes automatically snap to selected scale
• Per-Parameter CC Mapping – Individual CC assignments saved per project

🔊 Sound Shaping

• Coarse Tune – ±24 semitones tuning range
• Fine Tune – ±50 cents for precise detuning
• Drive System – 6 drive types (Overdrive, Distortion, Metal, Fuzz, Drive, Compression)
• Drive Mix – 0-100% drive mix
• Drive Tone – Adjust brightness after distortion (-100% to +100%)
• Drive Gain – Controls how hard the signal hits the drive circuit, determining overall intensity
• Volume Control – Master output level with dB display

💾 Preset Management

• Pattern Presets – Save/load complete 16-step patterns
• Patch Presets – Save/load all synthesizer settings
• Patch Randomization – 4 intelligent modes (Safe, Melodic, Aggressive, Complete Random)
• Patch Copy – Copy synth settings between patterns independently
• Preset Browser – Easy access menu for managing presets
• Full State Recall – All patterns and settings save with your project

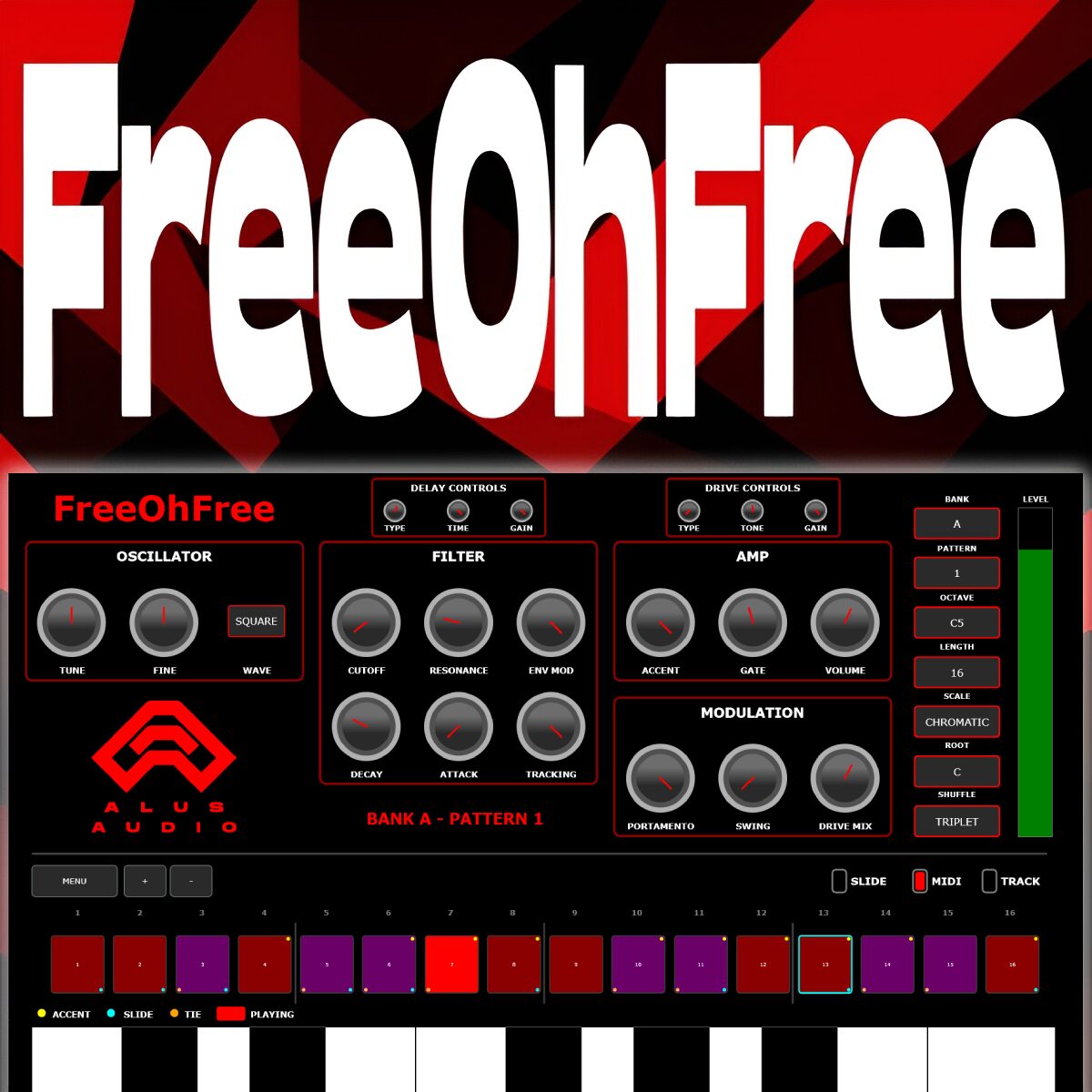

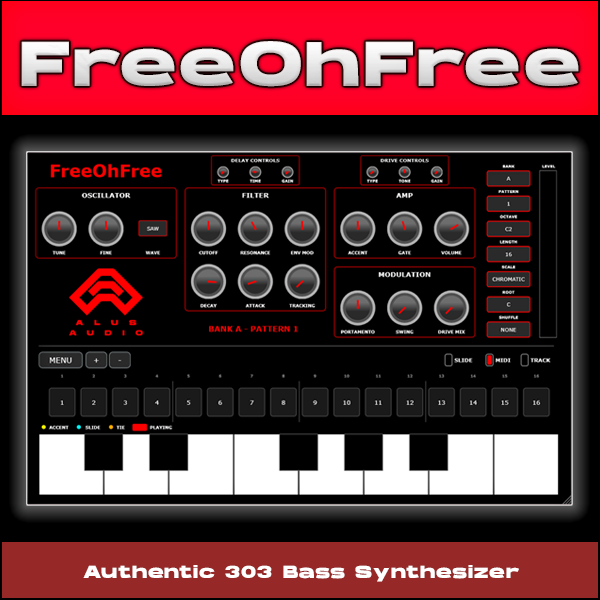

🎨 Professional Interface

• Resizable GUI – Scale interface from small to very large while maintaining clarity
• Smooth Knob Controls – Click-free parameter changes with floating value displays
• Fine-Tune Mode – Hold Shift while dragging for precise adjustments
• Direct Value Entry – Double-click any knob to type exact values in displayed units
• Visual Feedback – Real-time step highlighting and output metering with clip detection
• MIDI CC Indicators – Cyan labels show which parameters have MIDI mappings
• Organized Layout – Clear sections for Oscillator, Filter, Amp, Modulation, Drive, and Delay
• Helpful Tooltips – Hover over any control for detailed information
• Standalone Mode – Built-in transport controls and BPM adjustment (30-300 BPM)
• 7 Octave Ranges – Select keyboard octave from C1 to C7

---

Technical Details

Plugin Type	VST3 & Standalone
Supported OS	Windows 10+
Space Required	3MB / 4MB
Version	1.0
